TECHTONGDA Pipe Welding Machine Electric Tube Butt Fusion Equipment for PE PP PB PVDF PPR 2.48-6.30inch Hand Push Two Clamps

Description The pipe fusion welder has simple structure, and is easy to use. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance. Specifications Amount of clamps: 2 Welding level(Φ, mm)outer dia: 2.48" (63mm), 2.95" (75mm), 3.54" (90mm), 4.33" (110mm), 4.92" (125mm), 5.51" (140mm), 6.30" (160mm) Voltage: 110V Power of Heater: 1.2KW Power of Milling Cutter:0.65 KW Temperature range of Heater：122-572℉(50-300℃) Materials can be welded：PE PP PB PVDF PPR　 Package size: 23*20*18inch(58*50*45cm) Package weight: 77lbs(35kg) Item number:145041

• 【Application】The welder is suitable for PE PP PB PVDF PPR plastic pipe hot-melt butt welding. High quality design and construction provides an excellent machine for welding both on the construction site and in the factory.
• 【Welding Size】The outer diameter of suitable pipes is 90mm(3.54''),110mm(4.33''),125(4.92'')140(5.51''),160mm(6.30''),180(7.09''),200mm(7.87''),225mm(8.86''),250mm(9.84''). The welder uses carbon steel nuts which is strong, solid and durable.

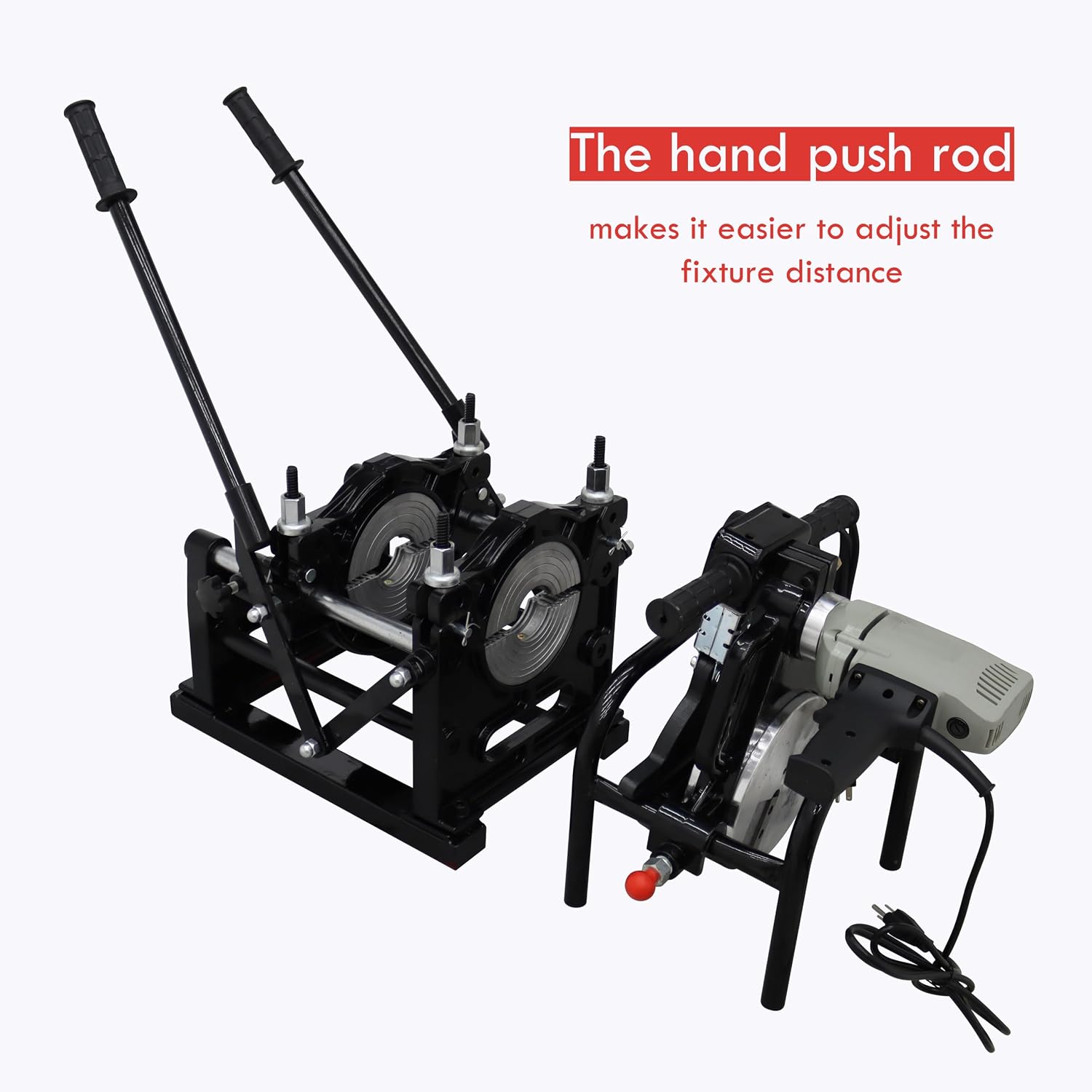

• 【Appearance】The welding machine consists of four parts: clamping frame, heating plate and milling machine and a basket frame. The hand push rod makes it easy to adjust the distance between the fixtures.
• 【Heat Fast and Evenly】The heating plate adopts independent temperature control system, and the surface coating is PTEF. The temperature range of the heating plate is 122-572℉.
• 【Sharp and High-harness Cutter】The milling cutter blade is made of high quality tool steel, designed with double blade, can be used on both sides. With high hardness, sharp and cutting neatly. The cutter uses copper core motor, powerful and durable.
